Description

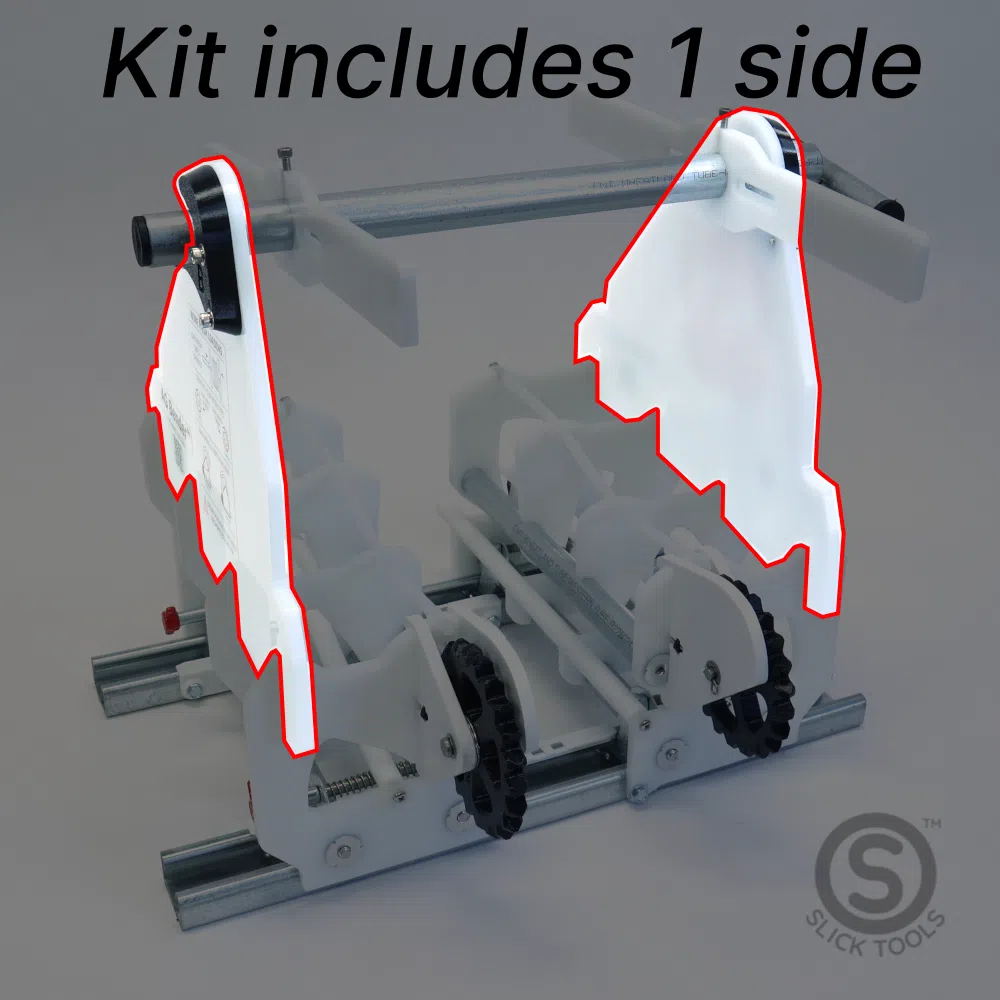

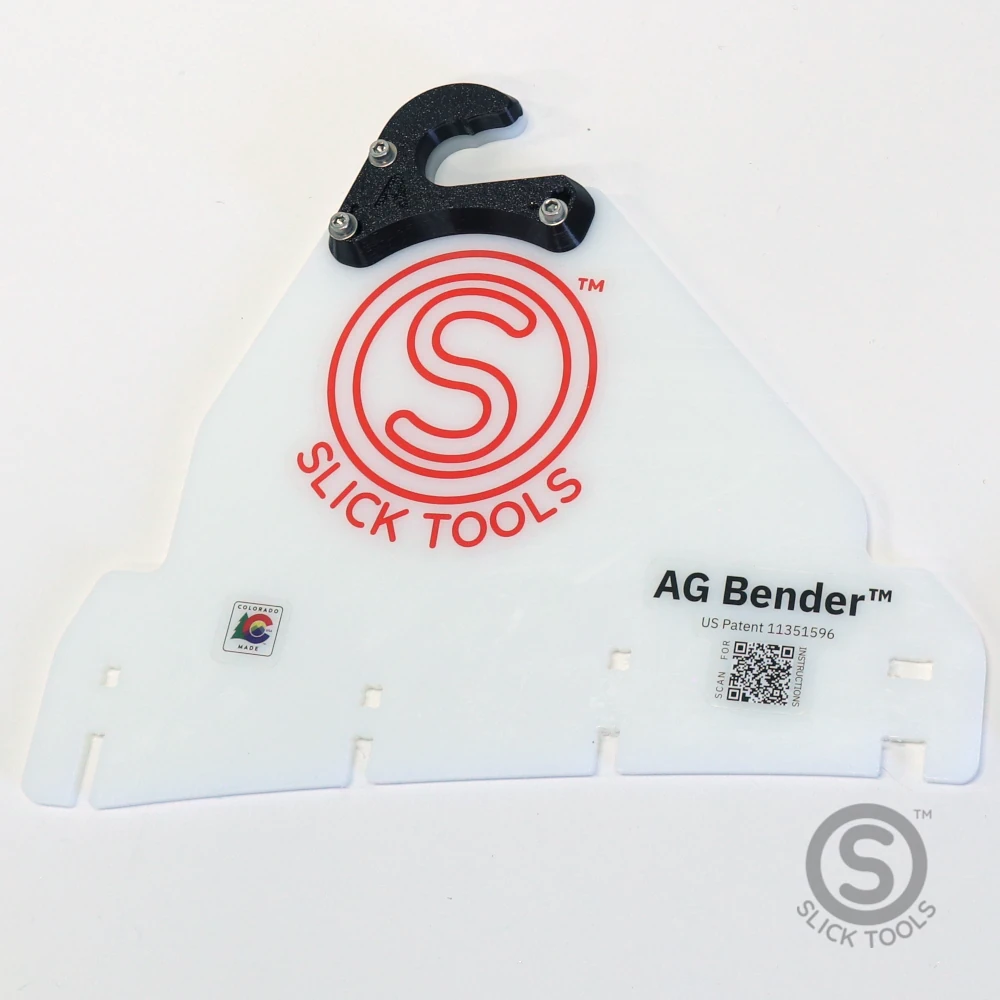

Triangluar plastic plate which holds the Spindle. Reinforcement to the hook area is pre-installed. Fits AG Bender 7.0 and up. Click here for help identifying your AG Bender model.
Note: The Spindle Support Reinforcement kit is a lower-cost way to restore a broken Spindle Support Plate.

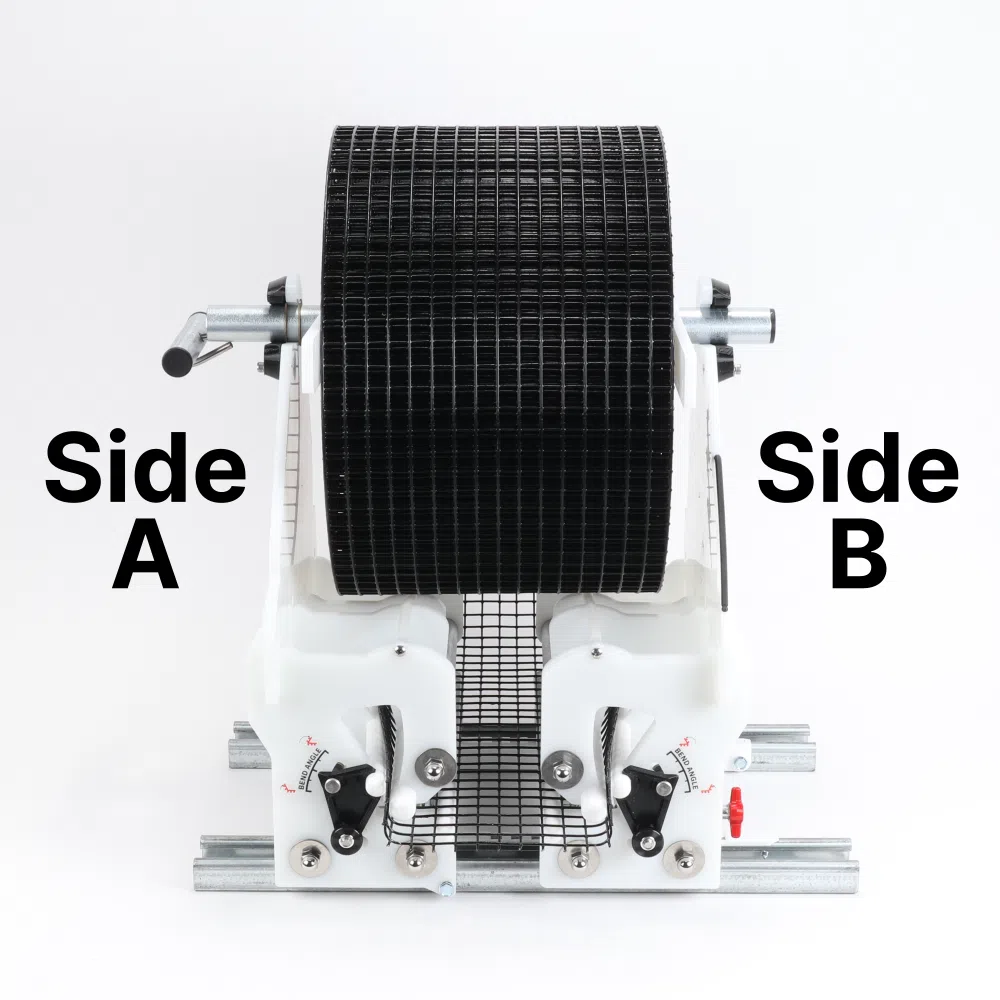

AG Bender Side Identification
- Side A is the non-adjustable side of the Bender. It is fixed to the strut channel. With sprockets pointing away from you, this is on your left.
- Side B is the side which can slide left/right on the strut channel. The clamps holding it in place can be loosened/tightened with knobs. With sprockets pointing away from you, this is on your right.
Assembly Instructions
The Spindle Support Plates “snap” into the AG Bender.

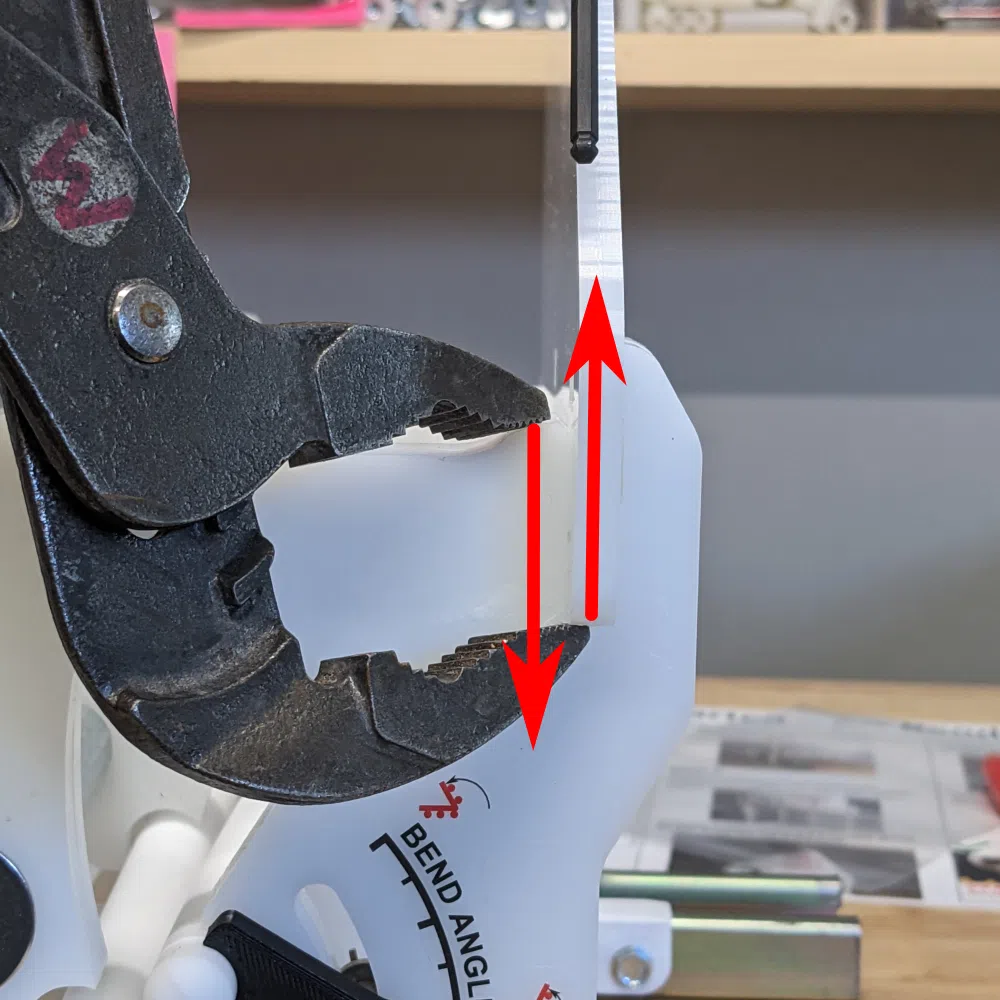

To remove an old Spindle Support Plate, use a pair of slip-joint pliers to separate the parts at each corner:
To install a new Spindle Support Plate, refer to the AG Bender Getting Started PDF.
